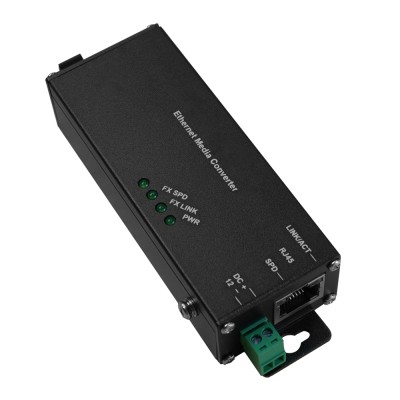

Unmanaged 2 Ports 1000M Gigabit SFP to RJ45 Fiber Optic To Fast Ethernet 30W PoE Industrial Media Converters

Description：

FR-POE233 Series commercial grade PoE fiber media provides an option for single or dual PoE ports with 100Mbps or Gigabit Ethernet, which communicates across optical fiber via SFP port or 1x9 optical transceiver.

The PoE feature complied with IEEE802.3 af/at standard, including a PSE controller, which offers PD signature sensing and PoE negotiation features. Other intelligent features include over-current protection, LFP function, etc.

Main Features：

• Ideal for confined spaces, and provides highly cost-effective solutions
• Auto-Negotiation – automatically determines the best connection speed
• Wall mountable using the integrated mounting holes
• Single or Dual IEEE 802.3at 30W PoE+ port
• Fast or Gigabit ethernet, SFP or 1X9 transceiver supports single-mode and multimode, single or dual fiber options up to 120km
• Supports Jumbo Frames up to 9.6K bytes
• Intelligent features(DIP Switch/Media Converter) supported including link fault pass-through, automatic laser shutdown, SFP reset and SFP speed selection

Application：

• Perfect for powering a Wireless Access Point (WAP) in a business environment
• Power a security camera/ network webcam situated in a remote area where power connection is not possible over an Ethernet connection
• Enable remote installation of touchscreens or information kiosks
• Connecting PoE device data and power to Gigabit fiber backbone

Precautions

To avoid damage to the equipment and personal injury caused by improper use, please observe the following precautions:

• Keep the power off during installation, wear an anti-static wrist, and ensure that the anti-static wrist is in good contact with the skin to avoid potential safety hazards.
• The Switch/Media Converter can work normally under the correct power supply. Please confirm that the power supply voltage matches the voltage indicated by the Switch/Media Converter.
• Before powering on the Switch/Media Converter, please make sure that the power circuit is not overloaded, so as not to affect the normal operation of the Switch/Media Converter and even cause unnecessary damage.
• To avoid the risk of electric shock, do not open the case while the Switch/Media Converter is working, even if it is not charged, do not open it yourself.
• Before cleaning the Switch/Media Converter, pull out the power plug of the Switch/Media Converter. Do not wipe with a wet cloth. Do not use liquid to clean it.
• The equipment installed in the rack is generally from bottom to top to avoid overload installation.
• Avoid placing other heavy objects on the surface of the Switch/Media Converter to avoid accidents.
