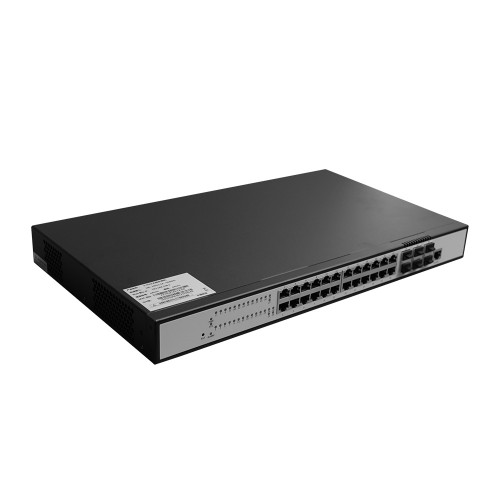

24 POE Ports 2.5GE 2500m VLAN port 6*10GE Uplink SFP+ Layer 3 Network Switch

{{ product.price_format }} {{ tiered.price_format }}
SKU:{{ product.sku }}
Model: {{ product.model }}
User Rating:

{{ }}

{{ }}

Porduct overview:

SZ6324-ACPB is a layer 3 Ethernet switch, which can meet the needs of cost-effective 2.5G access and 10 Gigabit uplink for enterprise networks and operator customers. SZ6324-ACPB uses a high-performance low-power network processor, provides Gigabit line-speed forwarding performance, supports green Ethernet line sleep capability, has the lowest power consumption of the same-level equipment in the industry, supports powerful QoS and ACL functions, and supports IP+MAC+ Security features such as port binding support service flow classification and packet priority marking. Support static data packet sampling, SFLOW function, support multi-port mirroring analysis function, support static and flexible QinQ function, support Ethernet OAM 802.3ag (CFM), 802.3ah (EFM), support strategy-based IPV4/6 unicast routing, support Flexible forwarding strategy.


Product Feature:

Carrier-level equipment stability

  • Based on Linux operating system,support IPv4/IPv6 dual protocol stack platform
  • Support multiple link redundancy and network redundancy protocols such as STP/RSTP/MSTP/ERPS/LACP


Perfect safety mechanism

  • Support ACL security filtering mechanism, which can provide security control functions based on MAC, IP, L4 port
  • Support ARP attack automatic protection and user blocking functions
  • Support DHCP attack automatic protection based on Mac Address and user blocking functions
  • Support DDOS and virus attack protection
  • Support DHCP-snooping/IP-source-Guard/802.1X and other security features
  • Support link protection functions such as BFD, FlexLink, LACP and ERRP
  • Support remote loop detection function
  • Support CFM、EFM
  • Support remote user authentication based on Tacacs+, Radius, and Local user authentication


Powerful QoS capabilities

  • Support port speed and flow speed limit function
  • Support classification based on service flow and Qos flow control function
  • Support queue scheduling algorithms such as SP/WRR/SP+WRR
  • Support port-based and service flow-based mirroring functions


Enhanced multi-service capabilities

  • Support DHCP Server and DHCP Relay
  • Support L2-Tunnel
  • Support Ethernet OAM protocol such as CFM、EFM


Rich routing protocol

  • Support static route
  • Support dynamic route such as RIP, OSPF,BGP, ISIS
  • Support IPV4/IPV6 dual protocol stack,Support RIPng、OSPFv3


Simple and easy-to-use network management function

  • Support CLI based on RS232 serial port, Telnet and SSHv2
  • Support WEB-based configure operation management, support SNMP V1/V2/V3
  • Support remote upgrade or equipment through FTP and TFTP
Hardware specifications
Port 24*10/100/1000/2500M Base-T POE,6*1000M Base-X SFP/10GE SFP+
Exchange capacity  240Gbps
Packet forwarding rate  160Mbps
MAC  32K
Multicast  4K
Route  12k
Memory and storage  Memory:512MB, storage:32MB
power AC:100~240V 47/63Hz;DC:36V~75V
Power consumption  ≤450W
weight 4.2kg
Dimensions (Width * height * depth) 440X260X44mm
Working Temperature -10℃~55℃
Storge temperature -40℃~70℃
Software specifications
VLAN Support 4K VLAN
Support Vlan based on port, MAC and protocol
Support dual Tag VLAN, port-based static QinQ and fiexible QinQ
MAC  16K Mac address
Support static MAC address setting
Support black hole MAC address filtering
Support port MAC address limit
ring network protocol Support STP/RSTP/MSTP
Support ERPS Ethernet ring network protection protocol
Support Loopback-detection port loopback detection
port control Support two-way bandwidth control
Support port storm suppression
Support 9K Jumbo ultra-long frame forwarding
Port aggregation Support static link aggregation
Support dynamic LACP
Each aggregation group supports a maximum of 8 ports
Mirroring Support port mirroring
Support stream mirroring
ACL Support standard and extended ACL
Support ACL policy based on time period
Provide flow classification and flow definition based on IP header
information such as source/destination MAC address, VLAN, 802.1p, ToS,
DSCP, source/destination IP address, L4 port number, protocol type, etc.
QoS Support flow rate limiting function based on custom business flow
Supports mirroring and redirection functions based on custom business flows
Support priority marking based on custom service flow, support 802.1P,
DSCP priority Remark capability Support port-based priority scheduling function,
support queue scheduling algorithms such as SP/WRR/SP+WRR
Safety Support user hierarchical management and password protection
Support IEEE 802.1X authentication
Support Radius&TACACS+ authentication
Support MAC address learning limit, support black hole MAC function
Support port isolation
Support broadcast message rate suppression
Support IP Source Guard Support ARP flood suppression and ARP
spoofing protection
Support DOS attack and virus attack protection
Layer 3 Support ARP learning and aging
Support static route
Support dynamic route RIP/OSPF/BGP/ISIS
Support VRRP
System management CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0
Support FTP,TFTP file upload and downdload
Support RMON
Support SNTP
Support system work log
Support LLDP neighbor device discovery protocol
Support 802.3ah Ethernet OAM
Support RFC 3164 Syslog
Support Ping and Traceroute
