Fiber Optical Modem EPon ONU 1 GE FTTH Mini XPon ONT

Fiber Optical Modem EPon ONU 1 GE FTTH Mini XPon ONT

product description:

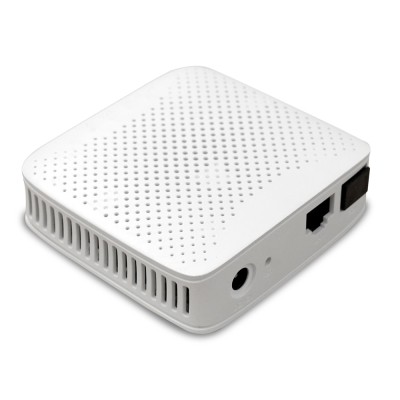

X31 XPon ONU HGU is a passive optical fiber network terminal independently developed by Hosecom. The device has built-in layer 2 switching function and layer 3 home gateway routing function. Small and compact, it is a high-performance, low-power consumption FTTH optical network unit. X31 ONU can automatically switch between EPON/GPON working modes and can be used in EPON/GPON networks, which is very suitable for the needs of operators and Internet Service Providers (ISPs) FTTH networking services.

Product Features:

• EPON/GPON dual-mode adaptive automatic switching mode
• GPON working mode complies with IEEE 802.3ah & itu-t g.984.x standard
• GPON: 8 T-CONTs, 32 GEM ports
• EPON working mode complies with IEEE 802.3ah specification and OAM protocol
• Compatible with 90% third-party OLT (including Vsolcn, Huawei, ZTE, FiberHome, BT-PON, etc.)
• Support WEB configuration function
• SFU and HGU types can be switched between each other
• HGU type, supports PPPoE/static IP/DHCP
• Layer 2 switching, supporting 802.1Q VLAN, 802.1P QOS, bandwidth control, spanning tree, etc.
• Three-layer home gateway/CPE function, with hardware NAT, support routing mode, etc.
• Supports Ethernet interface speed, working mode, MDI/MDIX auto-negotiation mode, and Pause flow control configuration
• Provides performance statistics for all Ethernet lines
• MulticastIGMP Snooping
• Support L2 line speed forwarding
• AES-128 algorithm performs data encryption on downlink data
