FTTH 4GE Full Gigabit Ethernet VOIP GPON XGPON Dual Mode Adaptive ONU ONT Router Fiber Modem

{{ product.price_format }} {{ tiered.price_format }}
Quantity:
SKU:{{ product.sku }}
Model: {{ product.model }}
User Rating:

{{ variable.name }}

{{ value.name }}

Product Overview:

XG1400 is an innovative FTTH terminal product independently developed by the our company. It has GPON/XGPON adaptive dual-mode uplink, and provides 4GE and 1 voice interface. Operators no longer need to consider the mode of the upper-end OLT during network deployment, which greatly reduces the preparation work of operation and maintenance engineers before network activation. It is more flexible and efficient, and can quickly provide home users with fiber-optic broadband access experience.

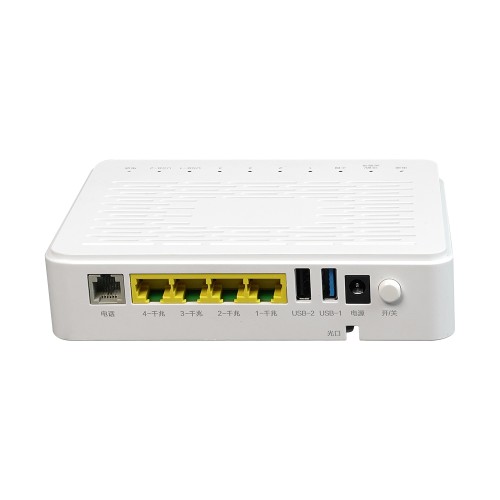

Interface:

  • 1 * GPON/XGPON interface: SC/UPC/APC interface, in line with GPON/XGPON Standard
  • 4 * Ethernet interface: 10M/100M/1000M, RJ45, IEEE802.3-2005 standard
  • 1 * VOIP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
  • 2 * USB interface: 1*USB 2.0 port, 1*USB 3.0 port



Hardware Parameters
Flash 256MB NAND
Memory 512MB DDR3
LED POW+PON/LOS+NET+LAN+POTS + USB
Port 4*RJ45(GE)
1*RJ11(POTS)
1*Reset+1*Power +1*LED button
1*SC/UPC (or SC/APC)
1*POTS
1*DC
1*USB 2.0+1*USB3.0
Size 190mm*135mm*33mm(L*W*H)
Consumption ≤8W
Interface Parameters
Ethernet Port Ethernet port-based VLAN tags and tag removal
VLAN transparent and mark
MAC address learning
10/100/1000Mbps Auto negotiation
PON Port PON port type: Class B +
Overload optical power: -8 dBm
Sensitivity: -28dBm
Working wavelength: 1310 nm/1490nm(GPON), 1270 nm/1577nm (XGPON)
GPON transmission rate:: downlink 2.5Gbps/uplink 1.25Gbps;
XGPON transmission rate:: downlink 10Gbps /uplink 2.5Gbps (XGPON)
VOIP Port The maximum number of parallel connected phones on the port: 4
G.711A/u, G.729a/b, G.722 codec
Support T.30/T.38/G.711 fax
DTMF
Emergency call (SIP protocol)
USB 1*USB 2.0 + 1*USB 3.0
Environment Data
Operating Temperature 0℃~45℃
Storage Temperature -20℃~70℃
Operating Humidity 5%~95%(non-condensing)
Power Supply 12V/1.5A



Product Function
GPON ITU-T G.984.1-4
ITU-T G.988/TR255/TR156
XGPON ITU-T G.987.3, G.988, G.989
Support 15 TCONTs/256GEM ports
8 queues per TCONT
Support GEM mapping for VLAN/Priority/VEIP
Support performance statistics based on: eth/Gem port
Support registration based on SN/LOID/SN + Password
Layer 3 Features PPPoE/Static IP/DHCP
NAT/NAPT
Port forwarding
ALG, UPnP
DDNS
IPv6/IPv4 dual stack, and DS-Lite
Static/Default routes
Multiple services on one WAN port
RIPv2 with passive mode
Layer 2 Features MAC learning (SVL)/aging
Support max frame length to1518 bytes
VLAN tagging for untagged packets
Support VLAN 1-4094
VLAN transparent/translation and marking, conversion mode
QoS Support 8 Queues with Strict Priority
Ethernet port rate limitation
802.1ppriority
SP/WRR
Service flow classification
Multicast IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376)
IGMP snooping and IGMP Proxy
MLD v1/v2
Management OMCI/Web UI/TR069
Telnet/SSH management with CLI commands
Dual-system software backup and rollback
Support dual image files
