Outdoor GPON OLT Porduct overview:

Outdoor GPON OLT GT0813 is an outdoor 8-port GPON OLT device with option independently developed by the company, with optional built-in EDFA+WDM combiner optical amplifier. The product follows the ITU-T G.984/G.988 technical standard. The product has good openness, high reliability, complete software functions, and flexibility. Compatible with any brand ONT. The product is suitable for outdoor harsh environments, resistant to high and low temperature, and can be widely used in operators' outdoor FTTH access, video surveillance, enterprise network, Internet of Things, etc.。

GT0813 can be installed on a pole or on a wall, which is convenient for installation and maintenance. The equipment adopts the industry's advanced technology, provides customers with efficient GPON solutions, Supports mixed networking of different types of ONUs, which can save a lot of costs。

Outdoor GPON OLT

Outdoor GPON OLT Built-in EDFA+WDM module (optional)

The optical amplifier uses the well-known high-performance erbium-yterbium co-doped double-clad fiber and low-noise pump laser. It has reliable circuit design and efficient heat dissipation design. The maximum total output power of the whole machine can reach+37dBm, supporting up to 16 outputs, including optical switch, CWDM and RF detection. It is applicable to the amplification and transmission of 1550nm optical signal in the downstream of FTTH network.

EDFA uses modular and erbium-doped fiber amplification technology. Support laser switch function and output optical power automatic power control (APC) function. The output optical power is 鈮?20dB, and the output power of the optical amplifier can be adjusted, which can float down 0-3dB, as the system power reserve. It is continuously adjustable at 0.1dBm step interval within 0-3dBm.



The field EDFA has the following characteristics:

  • - 3~+10dBm wide input range.
  • The maximum output total power is 20dBm, with 8-port output.
  • Excellent noise coefficient and nonlinear index.
  • The keys on the internal display screen provide parameter reference and setting
  • Cast aluminum waterproof shell, IP67 protection grade, excellent heat dissipation performance.
  • The switch power supply with high reliability can adapt to the harsh outdoor environment.

Outdoor GPON OLT

Note: The optical signal of the downstream network is amplified and transmitted in the FTTX network. One channel of input CATV 1550nm signal, eight channels of input OLT PON 1490nm signal, and eight channels of output combined optical signal ports are connected to the user terminal ONU through the ODN network respectively.

Attributes GT0813-OXACJ
Exchange capacity 104Gbps
Packet forwarding rate 77.376Mpps
Memory and storage memory:2GB, storage:8GB
Management port Console, MGMT
Port 8*GPON Port,1*10/100/1000M Base-T,
4*1000M Base-X SFP/4*10GE SFP+
PON Comply with ITU-TG.984/G.988 standard
20KM Physical differential distance,60KM transmission logical distance
1:128 Max splitting ratio
Standard OMCI management function
Open to any brand of ONT
ONU batch software upgrade
VLAN Support 4K VLAN
Support Vlan based on port, MAC and protocol
Support dual Tag VLAN, port-based static QinQ and fiexible QinQ
MAC 16K Mac address
Support static MAC address setting
Support black hole MAC address filtering
Support port MAC address limit
ring network protocol Support STP/RSTP/MSTP
Support ERPS Ethernet ring network protection protocol
Support Loopback-detection port loopback detection
port control Support two-way bandwidth control
Support port storm suppression
Support 9K Jumbo ultra-long frame forwarding
Port aggregation Support static link aggregation
Support dynamic LACP
Each aggregation group supports a maximum of 8 ports
Mirroring Support port mirroring
Support stream mirroring
ACL Support standard and extended ACL
Support ACL policy based on time period
Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc.
QoS Support flow rate limiting function based on custom business flow
Supports mirroring and redirection functions based on custom business flows
Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function
Support queue scheduling algorithms such as SP/WRR/SP+WRR
Safety Support user hierarchical management and password protection
Support IEEE 802.1X authentication
Support Radius&TACACS+ authentication
Support MAC address learning limit, support black hole MAC function
Support port isolation
Support broadcast message rate suppression
Support IP Source Guard Support ARP flood suppression and ARP spoofing protection
Support DOS attack and virus attack protection
Layer 3 Support ARP learning and aging
Support static route
Support dynamic route RIP/OSPF/BGP/ISIS
Support VRRP
System management CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0
Support FTP,TFTP file upload and downdload
Support RMON
Support SNTP
Support system work log
Support LLDP neighbor device discovery protocol
Support 802.3ah Ethernet OAM
Support RFC 3164 Syslog
Support Ping and Traceroute
Environment temperature Working Temperature:-10℃~55℃
Storge temperature:-40℃~70℃
environment humidity Operating humidity: 10%~95% (non-condensing)
Storage humidity: 10%~95% (non-condensing)
environment friendly China RoHs,EEE
weight ≤9.5kg
fan Fixed fans(three fans)
power AC: 100~240V/3A  47/63Hz
Power consumption ≤65W
Dimensions(Width * height * depth) 370x295x152mm
Only jpg/jpeg/png files can be uploaded, and it should not exceed 2M
Cancel Submit
Add reviews
Add first reviews
  • {{ item.user_name }}
    {{ item.content }}
    Loading...
    {{ item.created_at }} {{ item.order_product_name }}
Related Products
GPon OLT 4 PON Ports 4*10GE/GE SFP+ 4*GE RJ45 Uplink Port Dual power with optional
$755.00 $759.00

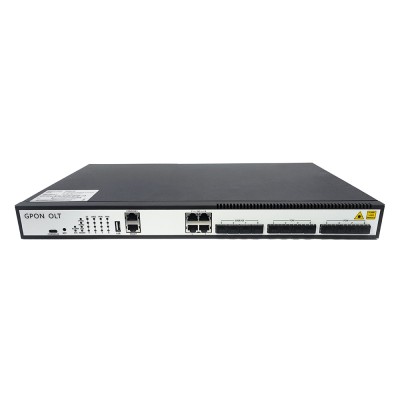

8 PON Ports GPon OLT 4*10GE/GE SFP+ 4*1GE RJ45 Uplink Port Dual power with optional
$905.00 $930.00
4*EPON port 4*10GE SFP+ 4GE RJ45 uplink port Dual power with optional EPon OLT
$285.00 $290.00

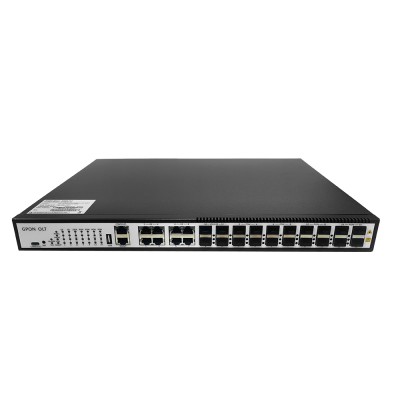

GPon OLT 16 PON Ports 4*10GE/GE SFP+ 8*1GE RJ45 uplink port, Dual power with optional
