Product Features:

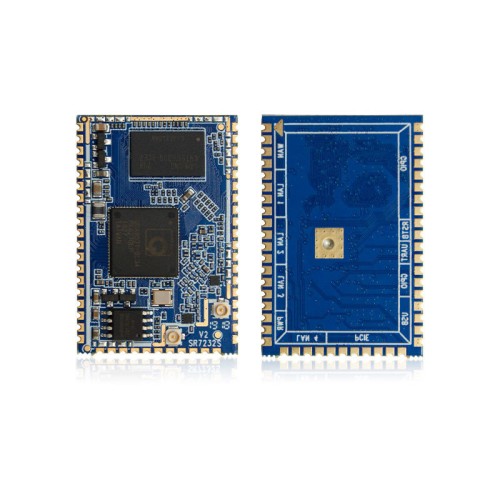

The ComloT 06 module is a complete compact 802.11 b/g/n Wi-Fi solution optimized for low cost, highly integrated, high power consumer electronics devices, the module is a highly integrated compact 802.11 b/g/n Wi-Fi gateway module. The ComloT-06 module integrates Wi-Fi functionality, network port, serial port, USB and routing system in a single package, requiring only a few simple external circuits to make the module work perfectly.
The module is based on a single chip QCA9531, which integrates 802.11n 2x2 MAC/BB/radio with internal PA and LNA. It supports 802.11n operation with 20MHz and 40MHz channels up to 144 Mbps and 300 Mbps respectively, as well as IEEE 802.11b/g data rates. The module supports both AP mode and client mode, and includes a large number of service applications to reduce customer research and design efforts.
Product Specifications
Main chip: QCA9531
RF frequency: 2.40~2.4835GHz
Wi-Fi protocol: 802.11b/g/n(2X2)
Modulation and demodulation:
11b: DBPSK, DQPSK and CCK and DSSS
11g: BPSK, QPSK,16QAM, 64QAM and OFDM
11n: MCS0~15 OFDM
Theoretical bandwidth:
11b:1,2,5.5 and 11Mbps
11g:6,9,12, 18, 24, 36, 48 and 54 Mbps
11n: MCS0~5, up to 300Mbps
Package Type: LCC
Main interfaces: Ethernet*5, UART*1, USB*1, PCIE*1
PCB stacking: 4-layers design

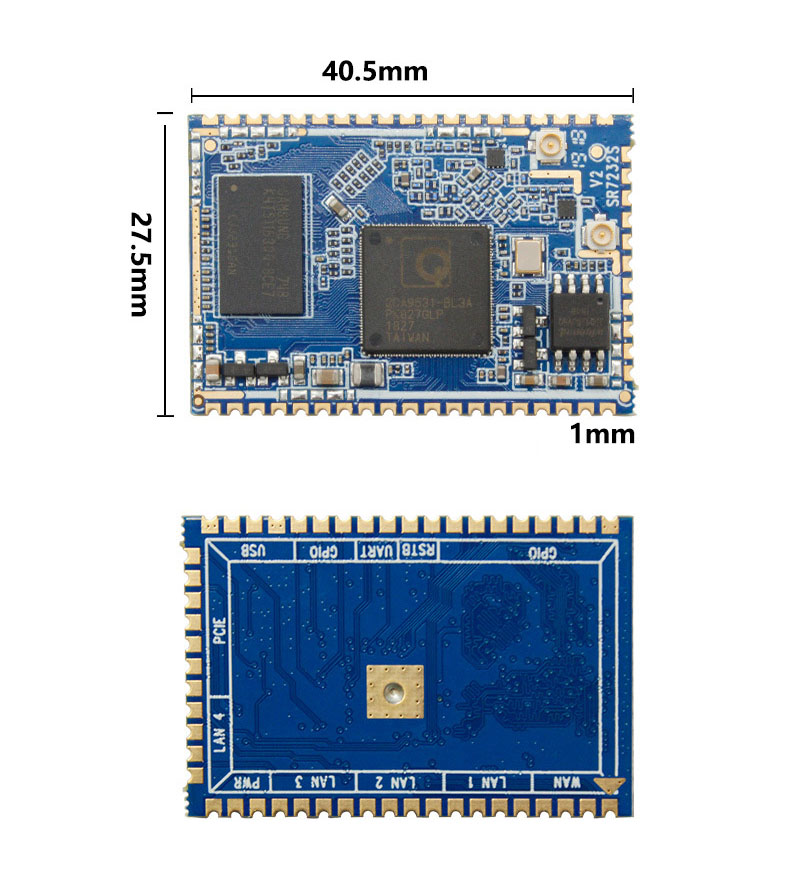

Product size: 40.5mm(W)x27.5mm(L)x1.0mm(T)
Antenna: standard ipex
Operating temperature: -10℃~70℃
Storage temperature: -40℃~150℃
Operating voltage: 3.3V+/-10%
Average power consumption: 1.5W
GPIO voltage: 2.5 V+/-10%
