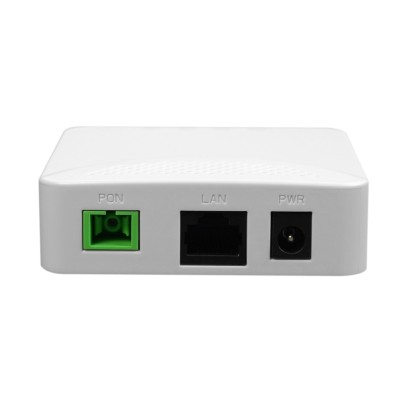

X11 is one of the latest G/EPON passive optical network communication terminal series, and the product provides 1 10/100/1000M RJ45 interface, and 1 optical fiber access, suitable for home and small business users,after that, it can also well meet the FTTH high-speed data transmission applications.
LED | PWR+PON/LOS+LAN |
Port | 1*RJ45(GE) |
1*Reset | |
1*SC/APC (or SC/UPC) | |
1*DC | |
Size | 79.5*74.7*22mm(L*W*H) |
Power Consumption | ≤8W |
Ethernet Port | Ethernet port-based VLAN tags and tag removal |
VLAN transparent and aggregation | |
MAC address learning | |
10/100/1000Mbps Auto negotiation |
G/EPON | ITU-T G.984.1-4 |
IEEE 802.3ah | |
15 TCONTs /256GEM ports | |
8 Egress queues per TCONT at least | |
VLAN or VLAN plus priority gem mapping mode | |
SN/LOID/SN+ Password authentication | |
Performance monitoring: eth/Gem port | |
Dying gasp | |
Layer 2 Features | MAC learning (SVL)/aging |
Support max frame length to1518 bytes | |
VLAN tagging for untagged packets | |
Support VLAN 1-4094 | |
VLAN transparent/translation | |
Multicast | IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376) |
IGMP snooping | |
Management | OMCI/Web UI |
SSH management with CLI commands | |
Dual-system software backup and rollback |
Operate Temperature | 0℃~45℃ |
Storage Temperature | -20℃~70℃ |
Operating Humidity | 5%~95% non-condensing |
Power Supply | 12V/0.5A |
