Components required for a complete fiber optic network

Author: Hosecom Release time: 2024-02-26 02:08:20 View number: 2366

Fiber Optic Network is a communication network based on optical fiber transmission technology. It uses optical fiber as the transmission medium to transmit data by sending and receiving optical signals. Optical fiber networks are widely used in modern communications because of their following advantages:



View More

View More

View More

View More

View More

  • High bandwidth and high speed: Fiber optic networks can provide huge bandwidth and transmission speeds, far exceeding traditional copper cable networks, and therefore can meet the growing demand for data transmission.
  • Low attenuation and low latency: Compared with copper wire cables, optical fiber has lower signal attenuation, longer transmission distance, and lower delay, making optical fiber networks more reliable in long-distance communications and real-time applications.
  • Strong anti-interference: Optical signals are almost not affected by external electromagnetic interference when transmitted in optical fibers. Therefore, optical fiber networks have good anti-interference properties and can ensure the stability and reliability of data transmission.
  • High security: Since optical signals are transmitted through optical fibers, they do not produce electromagnetic radiation during the transmission process, so they are difficult to be eavesdropped or intercepted, which improves the security of communications.
  • Energy saving and environmental protection: Compared with traditional copper cable networks, optical fiber networks have lower transmission losses, can save energy and reduce electromagnetic pollution, and meet environmental protection requirements.



Fiber optic networks can be used for a variety of communications applications, including Internet access, telephone communications, television signal transmission, data center connections, and more. It has become an important part of modern communication infrastructure and is widely used around the world.

Here are some specific pieces of equipment included in each major component:

  • Optical fiber transmission medium (Optical Fiber):
  1. Fiber optic cables: Including different types of fiber optic cables such as single-mode fiber optic fiber and multi-mode fiber optic fiber.
  • Optical Transceivers:
  1. Optical transmitter (Transmitter): A device that converts electrical signals into optical signals, usually including laser diodes (LD) or light-emitting diodes (LED).
  2. Optical receiver (Receiver): A device that converts optical signals received from optical fibers into electrical signals, usually including photodiodes (PD) or photodiodes (APD).
  • Fiber Optic Equipment:
  1. Fiber Switch: used to manage and control the transmission of optical signals to realize data exchange and routing between different devices in the optical fiber network.
  2. Fiber Router: used to forward and route data packets in optical fiber networks.
  3. Fiber Modem: used to convert digital signals into analog optical signals, and convert analog optical signals into digital signals.
  • Fiber Attenuators:
  1. Fiber fixed attenuator (Fixed Attenuator): used to fix the intensity of the attenuated optical signal.
  2. Optical fiber variable attenuator (Variable Attenuator): used to adjust the intensity of optical signals and can be adjusted according to needs.
  • Fiber Optic Connectors:
  1. FC (Fiber Connector) connector
  2. SC (Subscriber Connector) connector
  3. LC (Lucent Connector) connector
  4. ST (Straight Tip) connector
  5. MTP/MPO (Multiple-Fiber Push-On/Pull-Off) connectors, etc.
  • Fiber Distribution Frames:
  1. Fiber Patch Panel: used to organize and manage optical fiber connections, providing convenient interfaces and connections.
  • Fiber Patch Panels:
  1. Fiber Terminal Box: A box or panel used to connect and manage fiber optic connections.
  • Fiber Optic Cables:
  1. Single-Mode Fiber Cable
  2. Multimode Fiber Cable
  3. Fiber Patch Cord
  4. Fiber Distribution Cable, etc.

The above are some specific devices that each major component may include. The device selection and configuration in the actual network will vary according to the size of the network, performance requirements, and specific application scenarios.

Related Products
1GE FTTH ONU CATV Gigabit GPON ONT Fiber Optic Network Unit
$14.79 $18.50

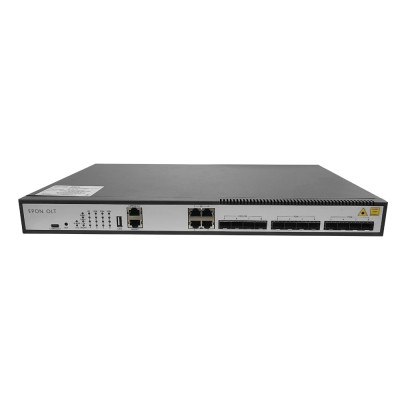

8 PON Ports 4*10GE/GE SFP+ 4GE RJ45 uplink port Dual power EPon OLT
$470.00 $490.00
Dual Band wifi wireless router wifi5 1200Mbps 4FE 2.4G 5G
$12.95 $18.00

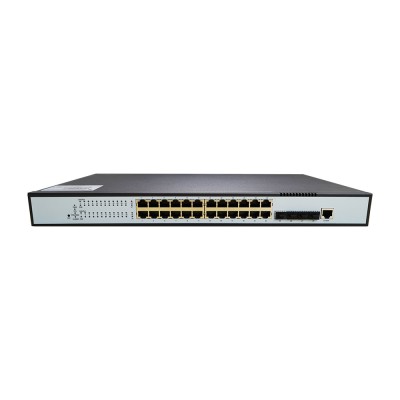

24 Ports POE Full Gigabit Access 4*10GE SFP+ 10Gigabit Uplink Layer 3 Network Switch
