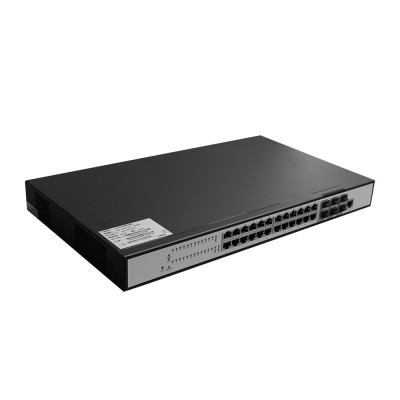

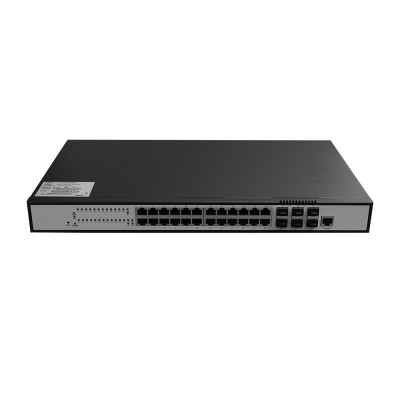

SG6324-ACPB is a layer 3 Ethernet switch, which can meet the needs of costeffective Gigabit access and 10 Gigabit uplink for enterprise networks and operator customers. SG6324-ACPB uses a high-performance low-power network processor, provides Gigabit line-speed forwarding performance, supports green Ethernet line sleep capability, has the lowest power consumption of the same-level equipment in the industry, supports powerful QoS and ACL functions, and supports IP+MAC+ Security features such as port binding support service flow classification and packet priority marking. Support static data packet sampling, SFLOW function, support multi-port mirroring analysis function, support static and flexible QinQ function, support Ethernet OAM 802.3ag (CFM), 802.3ah (EFM), support strategy-based IPV4/6 unicast routing, support Flexible forwarding strategy。
Carrier-level equipment stability
Powerful QoS capabilities
Enhanced multi-service capabilities
Rich routing protocol
| Hardware specifications | |
| Port | 24*10/100/1000M Base-T POE，4*1000M Base-X SFP/10GE SFP+ |
| Exchange capacity | 128Gbps |
| Packet forwarding rate 95Mbps | 95Mbps |
| MAC | 16K |
| Multicast | 1K |
| Route | 512 |
| Memory and storage | Memory：512MB, storage：32MB |
| power | AC： 100～240V 47/63Hz；DC： 36V～75V； |
| Power consumption | ≤450W |
| weight | 5kg |
| Dimensions(Width * height * depth) | 440X260X44mm |
| Working Temperature | -10℃～55℃ |
| Storge temperature | -40℃～70℃ |
| Software specifications | |
| VLAN | Support 4K VLAN Support Vlan based on port, MAC and protocol Support dual Tag VLAN, port-based static QinQ and fiexible QinQ |
| MAC | 16K Mac address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit |
| ring network protocol | Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loopback detection |
| port control | Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding |
| Port aggregation | Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports |
| Mirroring | Support port mirroring Support stream mirroring |
| ACL | Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc. |
| QoS | Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR |
| Safety | Support user hierarchical management and password protection Support IEEE 802.1X authentication Support Radius&TACACS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection Support DOS attack and virus attack protection |
| Layer 3 | Support ARP learning and aging Support static route Support dynamic route RIP/OSPF/BGP/ISIS Support VRRP |
| System management | CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0 Support FTP,TFTP file upload and downdload Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute |
