Description：

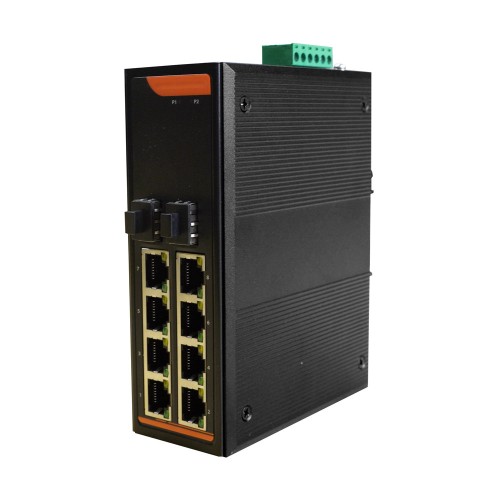

The Unmanaged Industrial Ethernet Switch is designed for small and medium industrial network applications. It provides an easy way to access Gigabit Ethernet. This switch's robust design makes it ideal for deployment in industrial and outdoor surveillance settings. It can optionally support DIN-Rail mounting or Wall mounting. LEDs provide visual monitoring of Ethernet-connected devices via twisted-pair RJ45 ports.
This industrial switch offers efficient Ethernet data exchange with various features such as no fan, low power consumption, high reliability and stability, and ease of maintenance. Moreover, It uses mature technology and open network standards and can operate in low and high temperatures. It is equipped with a redundant dual power supply, making it ideal for critical applications that need always-on connections.
Main Features：
| Model | FR-7N3208P |
| Ethernet Interface | |
| Copper Port | 8x10/100/1000Base-TX Port(RJ45) 2x1000Base-X(SFP/1x9) |
| Port Mode(Tx) | Auto Negotiation Full/Half Duplex Mode Auto MDI/MDI-X Connection |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x for flow control and back pressure IEEE802.3az for Energy Efficient Ethernet(EEE) |
| Packet Buffer Size | 2M |
| Maximum Packet Length | 9K |
| Exchange Property | Delay time: < 7μs Backplane bandwidth: 20G |
| Transmission Mode | Store and Forward (full/half duplex mode) |
| MAC Address Table | 4K |
| PoE & Power Supply | |
| PoE Ports | Port 1 to 8 IEEE802.3af/at @PoE+ |
| Max Power Per Port | 30W |
| Total PWR /Input Voltage | 240W(DC48-56V) (Model dependent) |
| Power Consumption | 10 Watts Max(without PoE load) |
| Input Voltage | 9-56VDC,Redundant dual inputs |
| Operating Voltage | Non-PoE Mode: 9-56VDC 30W PoE Mode: 48-56VDC 90W PoE Mode: 52-56VDC(IEEE802.3bt model) |
| Connector | 1 removable 6-contact terminal blocks Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm |
| Protection | Overload Current Protection, Reverse Polarity Protection |
| Power Inputs | 2 |
| Power Supply Pin | Default: 1/2(+), 3/6(-) |
| Physical Characteristics | |
| Housing | Aluminum case |
| IP Rating | IP40 |
| Dimensions | 138mm x 108mm x 49mm (L x W x H) |
| Installation | DIN Rail/Wall Mount |
| Weight | 680g |
| Environmental | |
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Storage Temperature | ,-40℃~85℃ (-40 to 185 ℉) |
| MTBF | 907,476 hours @ Telcordia SR-332 Standard |
| Heat Dissipation | 34 BTU/h (non-PoE mode) 853 BTU/h (with 240W PoE load) |
| Cooling | Passive Cooling, Fanless Design |
| Noise Level | 0 dBA |
| Package Contents | |
| Cable | 1xDB9 female to RJ45 |
| Installation Kit | 1x DIN-Rail Clip 2x Wall-Mount Kits |
| Device | 1x Industrial Ethernet Switch |
| Documentation | 1 x Quick installation guide 1 x Warranty card 1x Product notice |
| Regulatory & Warranty | |
| Safety | IEC/EN 62368-1 |
| EMI | EN55032 Class A, CISPR 32 FCC Part 15B Class A |
| EMS | EN61000-4-2 (ESD) EN61000-4-3 (RS) EN61000-4-4 (EFT) EN61000-4-5 (Surge) EN61000-4-6 (CS) EN61000-4-8 (PFMF |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Environmental | RoHS |
| Warranty | 5 Years |
