Descriptions:

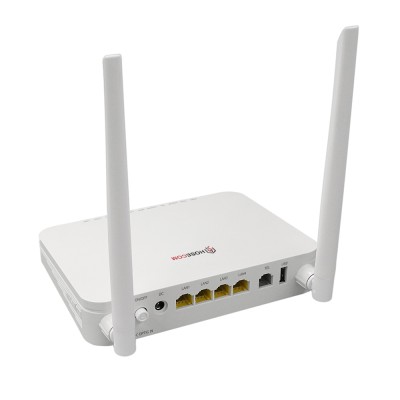

FTTH Fiber Optic Modem GPon EPon ONU ONT Router G8503 is a new terminal level GPON ONT, EPON&GPON mode adaptive, and it can support pure data, WIFI and many other services accessing type, and this ONT supports standard OMCI, which provides up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate, and it is a Wi-Fi 6 XPON ONT, It supports 802.11ax, 2.4G & 5G dual-band transmission rate up to 3000mbps. This Wifi6 GPon ONU's Easymesh system keeps you connected as you roam seamlessly from room to room without ever dropping your WiFi signal.
Features:
| CPU | Dual Core A9 1GHz |
| Chip model | ZX279128S |
| Memory | DDR：512MB / FLASH 256MB |
| WiFi Chip | 2.4G&5G: MTK7916+MTK7976 |
| GPON Protocol Specification | Comply ITU-T G.984 GPON standard: G.984.1 general characteristics G.984.2 physical Media Dependent (PMD) layer specifications G.984.3 transmission convergence layer specifications G.984.4 ONT management and control interface specification Support DS/US transmission rate to 2.488 Gbps/1.244 Gbps Wavelength: 1490 nm downstream & 1310 nm upstream Comply with class B+ type PMD Physical distance reach to 20 km Support Dynamic Bandwidth Allocation (DBA) GPON Encapsulation Method (GEM) supports Ethernet packet Supports GEM header removal/insertion and data extraction/segmentation (GEM SAR) |
| Network Protocol Specifications | 802.3 10/100/1000 Base T Ethernet ANSI/IEEE 802.3 NWay auto-negotiation 802.1Q VLAN tagging/un-tagging Support flexible traffic classification Support VLAN staking Support VLAN Intelligent Bridging |
| Interface | WAN: One Giga optical interface (APC or UPC)，EPON&GPON adaptive LAN: 4*10/100/1000 RJ-45 ports Voip: 1*RJ-11 port USB: 1*USB |
| LED Indicators | Power, PON, LOS, Internet, LAN4-1, WLAN, WPS, USB, POTS |
| WiFi Rate | 2.4G: 802.11n/ax with 574Mbps 5G: 802.11ac/ax with 2400Mbps |
| Frequency Band | 2.4 GHz frequency band 40MHz and 5.8 GHz frequency band 160MHz |
| Buttons | Power/WPS/WLAN/Reset |
| Antennas | 1*2.4G 5dBi External antennas 2*5G 5dBi External antennas 1*2.4G&5G 3dBi External antennas |
| Power Supply | DC12V/1.5A |
| Product Size | 257*221*50mm (length X width X height) |
| Work Environment | Working temperature: 0°C—40°C Working humidity: 10%～95%，no condensation |
| Security | WPA/WPA2/WPA3, 64/128bit WEP data encryption Firewall, Dos Protection |
| WAN Networking | Static IP WAN connection DHCP client WAN connection PPPoE WAN connection |
| VOIP | G.711A/μ, G.729, and G.722 encoding/decoding T.30/T.38/G.711 fax mode |
| Management | Standard OMCI (G.984.4) Web GUI (HTTP/HTTPS) Firmware upgrade via FTP/TFTP/HTTP Telnet, Web, SSH CLI command via telnet/console Configuration backup/restore TR069 |
| ONU | |
| Usage Scenarios | Ftth |
| Network Type | Wired Network + Wireless Network |
| Ethernet ports | 4GE Ports |
| Wifi Standards And Protocols | IEEE802.11b/g/n/ac/ax |
| Max. LAN Data Rate | 1000Mbps |
| Power adapter | DC 12V 1.5A |
| Wi-Fi Supported Frequency | 2.4G+5.8G dual band |
| 2.4G Wi-Fi Transmission Rate | 600Mbps |
| 5G Wi-Fi Transmission Rate | 2400Mbps |
| wireless transmission speed | 3000Mbps |
| keywords | ONU, ONT, GPON ONU, GPON ROUTER, XPON WIFI ROUTER |
| Antenna | 4*5dbi |
