GPon EPon ONT Dual Band ONU Overview:

GPon EPon ONT Dual Band ONU X1412 is a XPON ONU (GPON and EPON dual mode adaptive) optical terminal access device that is highly integrated with dual-frequency Wi-Fi5. It is the end-product of optical fiber for operators. It supports ultra-bandwidth access through G/EPON upstream technology and provides users with basic WIFI functions, routing, and gigabit Ethernet functions. The upstream network ports of the X1412 are G/EPON ports. The downstream user ports include four GE electrical ports, one USB port,one VOIP port and WiFi5 WLAN ports.

GPon EPon ONT Dual Band ONUGPon EPon ONT Dual Band ONU

GPon EPon ONT Dual Band ONU Interface:

  • 1 * G/EPON interface: SC/UPC/APC interface, ITU-T G.984,ITU-T IEEE802.3ah
  • 4 * Ethernet interface: 10/ 100/ 1000 Mbps, RJ - 45, IEEE802.3-2005 standard
  • 1 * VOIP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
  • 1 * USB interface: standard USB 3.0 interface
  • Dual-band WIFI5(2.4G 300Mbps 5G 867Mbps)



GPon EPon ONT Dual Band ONU X1412 Specification

Interface Parameters
G/EPON Port GPON:Class B +
EPON:PX20+
GPON:Upstream1.25Gbps; Downstream:2.48Gbps
EPON:Upstream1.25Gbps; Downstream:1.25Gbps
Ethernet Port Ethernet port-based VLAN tags and tag removal
VLAN transparent and mark
MAC address learning
10/100/1000Mbps Autonegotiation
VoIP Port Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward if no reply and Three-party calls.
G711A/G711U/G729/G722
SDP protocol (RFC 2327 and RFC 4566)
T.30/T.38/G.711 faxmode
Hardware Parameters
LED POWER+PON/LOS+NET+LAN+POTS+WiFi+WPS+USB
Ports 4*RJ45(GE)
1*RJ11(POTS)
1*Reset+1*Power +1*LED button+1*WiFi button+1*WPS
1*SC/UPC (or SC/APC)
1*POTS
1*DC
1*USB3.0
Size 190mm*135mm*33mm(L*W*H)
consumption ≤8W
WiFi5
WiFi protocol 2.4GHz supports 802.11b/g/n; 5GHz supports 802.11a/n/ac
Transmit power 2.4G 100mW,5G/200mW,
Antenna gain 5dBi
Antenna dual-antenna MIMO (2.4G&5G)
WLAN penetrate one reinforced concrete wall or two ordinary brick walls (non-reinforced concrete)
WLAN access capability 64 client
channel 2.4GHz(channel 1-13); 5GHZ(channel 36-161 )
WPS WLAN terminal devices with WPS Push Button function establish connection within 2 minutes
WLAN security function WPA-PSK、WPA2-PSK、WPA3、 WPA-PSK/WPA2-PSK AES、AES+TKIP
Air Speed 2.4G 300Mbps, 5G 867Mbps
Environment
Operating Temperature 0℃~45℃
Storage Temperature -20℃~70℃
Operating Humidity 5%~95%(non-condensing)
Power Supply 12V/1.5A



Product Function
GPON ITU-T G.984.1-4/IEEE802.3ah
15 TCONTs /256GEM ports
8 Egress queues per TCONT at least
VLAN/ priority/VEIP gem mapping mode
SN/LOID/SN+ Password authentication
Performance monitoring: eth/Gem port
Dying gasp
Layer 3 Features PPPoE/Static IP/DHCP
NAT/NAPT
Port forwarding
ALG, UPnP
DDNS
IPv6/IPv4 dual stack, and DS-Lite
Static/Default routes
Multiple services on one WAN port
RIPv2 with passive mode
Layer 2 Features MAC learning (SVL)/aging
Support max frame length to1518 bytes
VLAN tagging for untagged packets
Support VLAN 1-4094
VLAN transparent/translation
QoS Support 8 Queues with Strict Priority
Ethernet port rate limitation
802.1ppriority
SP/WRR
Service flow classification
Multicast IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376)
IGMP snooping and IGMP Proxy
MLD v1/v2
Management OMCI/Web UI/TR069
Telnet/SSH management with CLI
commands Dual-system software backup and rollback
Only jpg/jpeg/png files can be uploaded, and it should not exceed 2M
Cancel Submit
Add reviews
Add first reviews
  • {{ item.user_name }}
    {{ item.content }}
    Loading...
    {{ item.created_at }} {{ item.order_product_name }}
Related Products
Wifi6 Gpon ONU ONT AX3000 FTTH 3000Mbps 2.4G 5G Dual Band Wifi Wireless Mesh Router Fiber Optical Unit
$32.50 $38.00
Outdoor GPON OLT 8 PortS+4*10GE SFP+ 1*1GE RJ45 Uplink Port
$1,354.00 $1,500.00

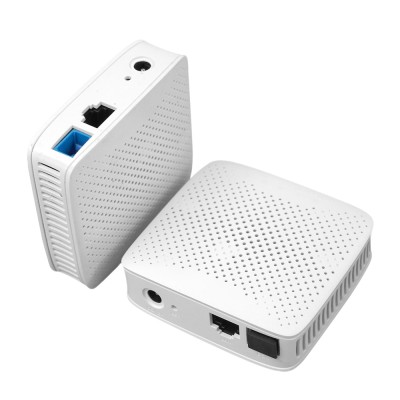

Mini GPon Home Router FTTH 1GE RJ45 Single Port GPon Small ONU ONT
$7.80 $8.50

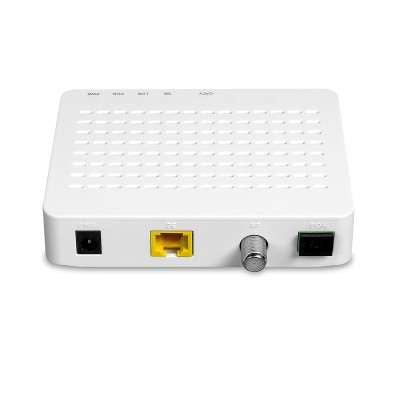

1GE ONU XPon CATV FTTH Fiber Optic Modem Router 1GE HGU with Routing
