GPon EPon ONU Modem 4GE 4 Ports RJ45 AC1200 2.5G 5G Dual Band Wifi5 Fiber Optic Network Unit XPon ONT

Quantity:

Brand: Hosecom-PON Products

SKU:{{ product.sku }}

Model: {{ product.model }}

User Rating:

GPon EPon ONU Modem 4GE 4 Ports RJ45 AC1200 2.5G 5G Dual Band Wifi5 Fiber Optic Network Unit XPon ONT

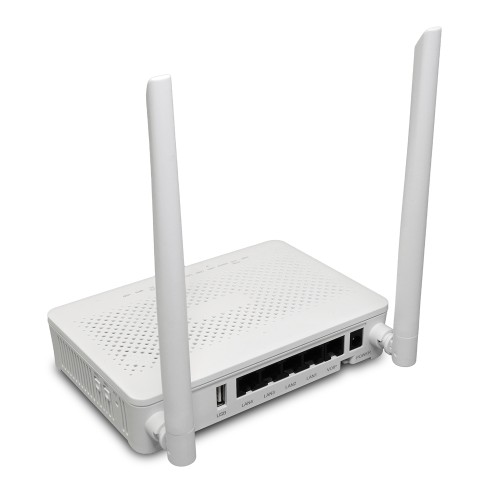

The G1412 is a GPon and EPon dual mode adaptive optical terminal Unit that is highly integrated with dual-frequency Wi-Fi 5. it supports ultra-bandwidth access through GEPon upstream technology and provides users with basic WiFi function, routing, and gigabit Ethernet function. The upstream network ports of the G1412 are GEPon ports. It has 4 GE RJ45 ports, 1 USB port, 1 VoIP port and WiFi 5 WLAN port.

GPon EPon ONU Modem G1412 Ports:

1* G/EPON interface: SC/UPC/APC interface, ITU-T G.984,ITU-T IEEE802.3ah
4*Ethernet interface:10/100/1000 Mbps, R」-45,EEE802.3-2005 standard
1* VOlP interface: in accordance with G. 711 a/u, G.729 a/b, G. 722 standard
1*USB interface: standard USB 2.0 interface
Dual-band WlFl5(2.4G 300Mbps 5G 867Mbps)

Hardware Parameters
PORTS:	4*RJ45(GE)
	1*RJ11(POTS)
	1Reset+1Power +1WiFi button+1WPS
	1*SC/UPC (or SC/APC)
	1*DC
	1*USB2.0
Size	160mm105mm30mm(LWH)
consumption	≤8W
LED	POWER+PON/LOS+Internet+LAN+VOIP+WiFi+WPS+USB
Interface Parameters
G/EPON Port	GPON: Class B +
	EPON: PX20+
	GPON: Upstream1.25Gbps
	Downstream: 2.48Gbps
	EPON: Upstream1.25Gbps;
	Downstream: 1.25Gbps
Ethernet Port	Ethernet port-based VLAN tags and tag removal
	VLAN transparent and mark
	MAC address learning
	10/100/1000Mbps Autonegotiation
VolP Port	Call waiting, Inconditional Call Forward
	Call Forward if Busy,Call Forward if no reply and Three-party calls.
	G711A/G711U/G729/G722
	SDP protocol (RFC 2327 and RFC 4566)
	T.30/T.38/G.711 faxmode
WiFi5
WiFi protocol	2.4GHz supports 802.11b/g/n
WiFi protocol	5GHz supports 802.11a/n/ac
Transmit power	2.4G 100mW,5G/200mW
Antenna gain	5dBi
Antenna	dual-antenna MlMO (2.4G&5G)
WLAN penetrate	one reinforced concrete wall or two ordinary brick walls (non-reinforced concrete)
WLAN access capability	64 client
channel	2.4GHz(channel 1-13), 5GHZ(channel 36-161 )
WPS	WLAN terminal devices with WPS, Push Button function establish connection within 2 minutes
WLAN security function	WPA-PSK, WPA2-PSK, WPA3, WPA-PSKNPA2-PSK, AES, AES+TKIP
Wifi rate	2.4G 300Mbps, 5G 867Mbps
Environment
Operating Temperature	0℃~45℃
Storage Temperature	-20℃~70℃
Operating Humidity	5%~95%(non-condensing)
Power Supply	12V/1.5A
