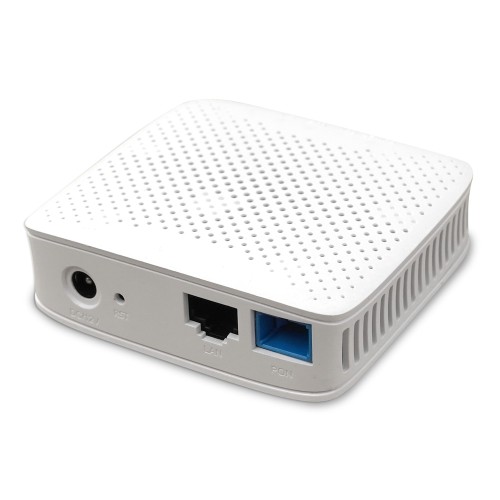

Mini ONU Overview

Mini ONU X11 is one of the latest G/EPON passive optical network communication terminal series, and the product provides 1 10/100/1000M RJ45 interface, and 1 optical fiber access, suitable for home and small business users,after that, it can also well meet the FTTH high-speed data transmission applications.



Mini ONU Interface Function

  • 1 *G/EPON interface:SC/UPC/APC interface,Comply with GPON and EPON standards
  • 1* Ethernet interface:10Mbps/100Mbps/1000Mbps,RJ-45,Comply IEEE802.3–2005 standards

Mini ONU

Mini ONU hardware parameters



LED PWR+PON/LOS+LAN
Port 1*RJ45(GE)
1*Reset
1*SC/APC (or SC/UPC)
1*DC
Size 79.5*74.7*22mm(L*W*H)
Power Consumption ≤8W
Ethernet Port Ethernet port-based VLAN tags and tag removal
VLAN transparent and aggregation
MAC address learning
10/100/1000Mbps Auto negotiation



Solfware Parameters

G/EPON ITU-T G.984.1-4
IEEE 802.3ah
15 TCONTs /256GEM ports
8 Egress queues per TCONT at least
VLAN or VLAN plus priority gem mapping mode
SN/LOID/SN+ Password authentication
Performance monitoring: eth/Gem port
Dying gasp
Layer 2 Features MAC learning (SVL)/aging
Support max frame length to1518 bytes
VLAN tagging for untagged packets
Support VLAN 1-4094
VLAN transparent/translation
Multicast IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376)
IGMP snooping
Management OMCI/Web UI
SSH management with CLI commands
Dual-system software backup and rollback

Environment

Operate Temperature 0℃~45℃
Storage Temperature -20℃~70℃
Operating Humidity  5%~95% non-condensing
Power Supply 12V/0.5A
