What is EPon GPon Fiber Modem?

Author: Hosecom Release time: 2024-05-29 01:48:02 View number: 1025

EPON and GPON fiber modems are devices used in fiber optic access networks that combine the functions of optical network terminals (ONTs) to facilitate data transmission between users and internet service providers. Here's a detailed explanation:

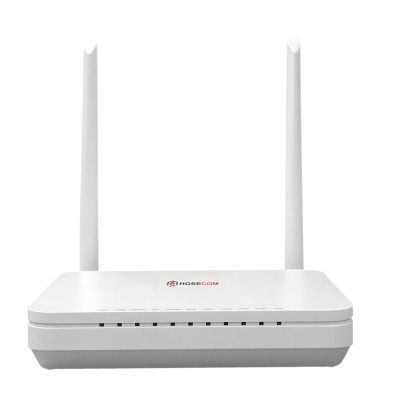

onu modem

EPON Fiber Modem:

EPON (Ethernet Passive Optical Network):

Standard: Based on IEEE 802.3ah.
Bandwidth: Provides symmetric bandwidth of 1 Gbps (both upstream and downstream).
Frame Structure: Uses Ethernet frame structure, suitable for transmitting Ethernet data.
Communication Method: Communication between the Optical Line Terminal (OLT) and the Optical Network Unit/Terminal (ONU/ONT) occurs through Ethernet frames.
Advantages: Compatible with existing Ethernet infrastructure, lower cost.

GPON Fiber Modem:

GPON (Gigabit Passive Optical Network):

Standard: Based on ITU-T G.984 series standards.
Bandwidth: Provides 2.5 Gbps downstream and 1.25 Gbps upstream bandwidth.
Frame Structure: Uses TDMA (Time Division Multiple Access) based on GPON frames.
Communication Method: Communication between the OLT and the ONU/ONT occurs through GPON frames.
Advantages: Higher bandwidth, suitable for applications requiring higher data transmission rates.

Working Principle

Fiber Modem:

A fiber modem connects the internal network of a home or business to the fiber optic access network.
It converts optical signals into digital signals that user devices (such as computers and routers) can access the internet with.
Additionally, it converts the user's digital signals into optical signals for transmission to the service provider's network.

Main Functions

Signal Conversion: Converts optical signals to electrical signals that user devices can process and vice versa.
Network Access: Provides high-speed, stable network access services.
Multi-service Support: Supports various services including voice, data, and video.

Usage Scenarios

Home Users: Connect to the internet through a fiber modem, enjoying high-speed broadband services.
Business Users: Use fiber modems to meet high bandwidth needs for business applications such as video conferencing and cloud computing.

Selection Considerations

Bandwidth Requirements: Choose between EPON and GPON based on the required upstream and downstream bandwidth.
Compatibility: Ensure the device is compatible with existing network infrastructure.
Cost: Consider the purchase and maintenance costs of the device.

In summary, EPON and GPON fiber modems are essential devices for enabling Fiber to the Home (FTTH) and Fiber to the Building (FTTB) applications. Selecting the appropriate technology and device can meet various network needs efficiently.
