fiber modem with wifi Router 1*2.5GE 3*1GE 4 Ports 10G downstream XGPon ONU

**fiber modem with wifi Router 12.5GE 31GE 4 Ports 10G downstream XGPon ONU**

Overview:

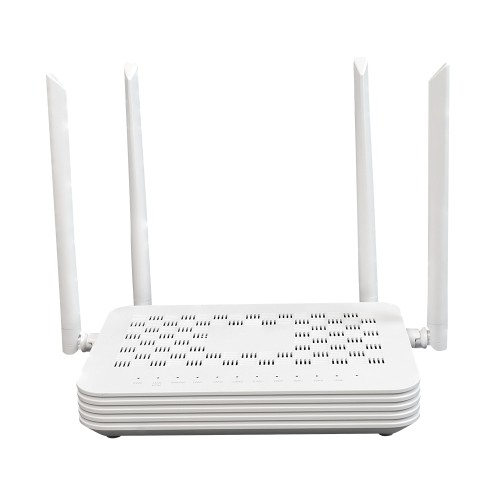

The fiber modem with wifi XG1430 is a XGPON optical terminal access device that is highly integrated with dual-frequency Wi-Fi6 (AX3000) . It is the end-product of optical fiber for operators. It supports ultra-bandwidth access through XGPON upstream technology and provides users with basic WIFI functions, routing, and gigabit Ethernet functions. The upstream network ports of the XG1430 are XGPON ports. The downstream user ports include 3 gigabit 1 2.5G ethernet ports, one USB port, one VOIP port and AX3000 WiFi6 WLAN ports.

Interface:

1 * XGPON interface: SC/UPC/APC interface, XGPON standard
1 * 2.5G+3*1GE, RJ45, IEEE802.3-2005 standard
1 * VOIP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
1 * USB interface: standard USB 3.0 interface
Dual-band WIFI6 AX3000 (2 ×2 MIMO (2.4G&5G))

Hardware Parameters
Flash	256MB NAND
Memory	512MB DDR3
LED	POWER+PON/LOS+NET+LAN+POTS+WiFi+WPS+USB
Port	12.5G+3GE RJ45
	1*RJ11(POTS)
	1Reset+1Power +1LED button+1WiFi button+1*WPS
	1*SC/UPC (or SC/APC)
	1*POTS
	1*DC
	1*USB3.0
Size	190mm135mm33mm(LWH)
Consumption	≤20W
Interface Parameters
Ethernet Port	Ethernet port-based VLAN tags and tag removal
	VLAN transparent and mark
	MAC address learning
	100/100/1000/2.5G Mbps Autonegotiation
XGPON Port	Class B + optical system
	Maximum Receive Sensitivity: -8 dBm
	Minimum reception sensitivity: -28 dBm
	Wavelengths: US 1270 nm, DS 1577nm
	10G downstream/2.5G upstream
VOIP Port	Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward if no reply and Three-party calls.
	G711A/G711U/G729/G722
	SDP protocol (RFC 2327 and RFC 4566) T.30/T.38/G.711 fax mode
	DTMF
USB	USB 3.0
Environment Data
Operating Temperature	0℃~45℃
Storage Temperature	-20℃~70℃
Operating Humidity	5%～95%（non-condensing）
Power Supply	12V/2A
WiFi6（AX3000）
WiFi protocol	2.4GHz supports
	802.11b/g/n/ax
	5GHz supports 802.11a/n/ac/ax
Transmit power	2.4G 100mW,5G/200mW,
Antenna gain	5dBi
Antenna	dual-antenna MIMO (2*2) (2.4G&5G)
WLAN penetrate	one reinforced concrete wall or two ordinary brick walls (non-reinforced concrete),
WLAN access capability	64/SSID
channel	2.4GHz（channel 1-13） 5GHZ（channel 36-161 ）
WPS	WLAN terminal devices with WPS Push Button function establish connection within 2 minutes
WLAN security function	WPA-PSK、WPA2-PSK、 WPA3、WPA-PSK/WPA2-PSK AES、AES+TKIP
Air Speed	574 Mbps (2.4GHz)，2402 Mbps (5GHz)
Multicast	WMM(Wi-Fi Multi Media)
