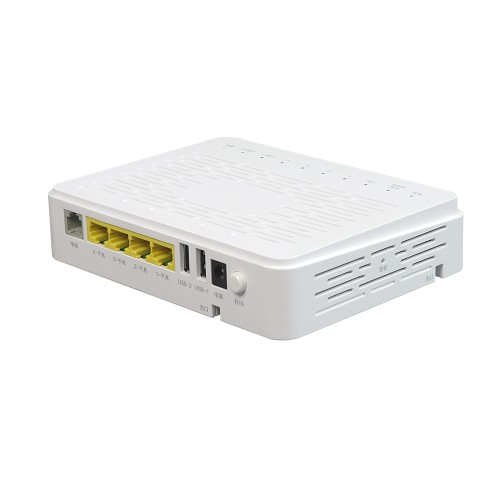

ONU 10G 4GE Full Gigabit Ethernet LAN Ports XGPon ONT Router for FTTX
Product Overview：
XG1400 is an innovative FTTH terminal product independently developed by the our company. It has GPON/XGPON adaptive dual-mode uplink, and provides 4GE and 1 voice interface. Operators no longer need to consider the mode of the upper-end OLT during network deployment, which greatly reduces the preparation work of operation and maintenance engineers before network activation. It is more flexible and efficient, and can quickly provide home users with fiber-optic broadband access experience.
Interface：
| Hardware Parameters | |
| Flash | 256MB NAND |
| Memory | 512MB DDR3 |
| LED | POW+PON/LOS+NET+LAN+POTS + USB |
| Port | 4*RJ45(GE) |
| 1*RJ11(POTS) | |
| 1*Reset+1*Power +1*LED button | |
| 1*SC/UPC (or SC/APC) | |
| 1*POTS | |
| 1*DC | |
| 1*USB 2.0+1*USB3.0 | |
| Size | 190mm*135mm*33mm(L*W*H) |
| Consumption | ≤8W |
| Interface Parameters | |
| Ethernet Port | Ethernet port-based VLAN tags and tag removal |
| VLAN transparent and mark | |
| MAC address learning | |
| 10/100/1000Mbps Auto negotiation | |
| PON Port | PON port type: Class B + |
| Overload optical power: -8 dBm | |
| Sensitivity: -28dBm | |
| Working wavelength: 1310 nm/1490nm(GPON), 1270 nm/1577nm (XGPON) | |
| GPON transmission rate:: downlink 2.5Gbps/uplink 1.25Gbps; | |
| XGPON transmission rate:: downlink 10Gbps /uplink 2.5Gbps (XGPON) | |
| VOIP Port | The maximum number of parallel connected phones on the port: 4 |
| G.711A/u, G.729a/b, G.722 codec | |
| Support T.30/T.38/G.711 fax | |
| DTMF | |
| Emergency call (SIP protocol) | |
| USB | 1*USB 2.0 + 1*USB 3.0 |
| Environment Data | |
| Operating Temperature | 0℃~45℃ |
| Storage Temperature | -20℃~70℃ |
| Operating Humidity | 5%～95%（non-condensing） |
| Power Supply | 12V/1.5A |
| Product Function | |
| GPON | ITU-T G.984.1-4 |
| ITU-T G.988/TR255/TR156 | |
| XGPON | ITU-T G.987.3, G.988, G.989 |
| Support 15 TCONTs/256GEM ports | |
| 8 queues per TCONT | |
| Support GEM mapping for VLAN/Priority/VEIP | |
| Support performance statistics based on: eth/Gem port | |
| Support registration based on SN/LOID/SN + Password | |
| Layer 3 Features | PPPoE/Static IP/DHCP |
| NAT/NAPT | |
| Port forwarding | |
| ALG, UPnP | |
| DDNS | |
| IPv6/IPv4 dual stack, and DS-Lite | |
| Static/Default routes | |
| Multiple services on one WAN port | |
| RIPv2 with passive mode | |
| Layer 2 Features | MAC learning (SVL)/aging |
| Support max frame length to1518 bytes | |
| VLAN tagging for untagged packets | |
| Support VLAN 1-4094 | |
| VLAN transparent/translation and marking, conversion mode | |
| QoS | Support 8 Queues with Strict Priority |
| Ethernet port rate limitation | |
| 802.1ppriority | |
| SP/WRR | |
| Service flow classification | |
| Multicast | IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376) |
| IGMP snooping and IGMP Proxy | |
| MLD v1/v2 | |
| Management | OMCI/Web UI/TR069 |
| Telnet/SSH management with CLI commands | |
| Dual-system software backup and rollback | |
| Support dual image files | |
