Overview:

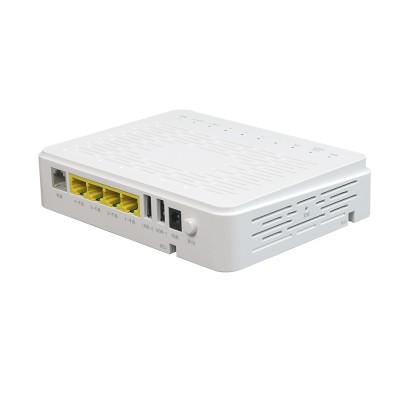

The XG1430 is a XGPON optical terminal access device that is highly integrated with dual-frequency Wi-Fi6 (AX3000) . It is the end-product of optical fiber for operators. It supports ultra-bandwidth access through XGPON upstream technology and provides users with basic WIFI functions, routing, and gigabit Ethernet functions. The upstream network ports of the XG1430 are XGPON ports. The downstream user ports include 3 gigabit 1 2.5G ethernet ports, one USB port, one VOIP port and AX3000 WiFi6 WLAN ports.
Interface:
| Hardware Parameters | |
| Flash | 256MB NAND |
| Memory | 512MB DDR3 |
| LED | POWER+PON/LOS+NET+LAN+POTS+WiFi+WPS+USB |
| Port | 1*2.5G+3*GE RJ45 |
| 1*RJ11(POTS) | |
| 1*Reset+1*Power +1*LED button+1*WiFi button+1*WPS | |
| 1*SC/UPC (or SC/APC) | |
| 1*POTS | |
| 1*DC | |
| 1*USB3.0 | |
| Size | 190mm*135mm*33mm(L*W*H) |
| Consumption | ≤20W |
| Interface Parameters | |
| Ethernet Port | Ethernet port-based VLAN tags and tag removal |
| VLAN transparent and mark | |
| MAC address learning | |
| 100/100/1000/2.5G Mbps Autonegotiation | |
| XGPON Port | Class B + optical system |
| Maximum Receive Sensitivity: -8 dBm | |
| Minimum reception sensitivity: -28 dBm | |
| Wavelengths: US 1270 nm, DS 1577nm | |
| 10G downstream/2.5G upstream | |
| VOIP Port | Call waiting, Inconditional Call Forward, Call Forward if Busy,Call Forward if no reply and Three-party calls. |
| G711A/G711U/G729/G722 | |
| SDP protocol (RFC 2327 and RFC 4566) T.30/T.38/G.711 fax mode | |
| DTMF | |
| USB | USB 3.0 |
| Environment Data | |
| Operating Temperature | 0℃~45℃ |
| Storage Temperature | -20℃~70℃ |
| Operating Humidity | 5%～95%（non-condensing） |
| Power Supply | 12V/2A |
| WiFi6（AX3000） | |
| WiFi protocol | 2.4GHz supports |
| 802.11b/g/n/ax | |
| 5GHz supports 802.11a/n/ac/ax | |
| Transmit power | 2.4G 100mW,5G/200mW, |
| Antenna gain | 5dBi |
| Antenna | dual-antenna MIMO (2*2) (2.4G&5G) |
| WLAN penetrate | one reinforced concrete wall or two ordinary brick walls (non-reinforced concrete), |
| WLAN access capability | 64/SSID |
| channel | 2.4GHz（channel 1-13） 5GHZ（channel 36-161 ） |
| WPS | WLAN terminal devices with WPS Push Button function establish connection within 2 minutes |
| WLAN security function | WPA-PSK、WPA2-PSK、 WPA3、WPA-PSK/WPA2-PSK AES、AES+TKIP |
| Air Speed | 574 Mbps (2.4GHz)，2402 Mbps (5GHz) |
| Multicast | WMM(Wi-Fi Multi Media) |
