10G RJ45 SFP+ Single Port Mini 10 Gigabit High Speed Network Fiber Media Converter

{{ product.price_format }}
{{ product.origin_price_format }}
Quantity:
SKU:{{ product.sku }}
Model: {{ product.model }}
User Rating:

{{ variable.name }}

{{ value.name }}

Description:

The FR-2222 Mini Fiber to Ethernet Media Converter provides flexible options for 100Mbps, Gigabit and 10 Gigabit Ethernet communication across fiber via the SFP or SFP+ port with intelligent configuration features such as link fault pass-through, auto laser shutdown, port speed setting, etc.



Main Features:

  • Ideal for confined spaces, and provides highly cost-effectivesolutions
  • Auto-Negotiation –automatically determines the best connection speed
  • Wall mountable using the integrated mounting holes
  • Rack mountable using the optional 19 inch 1U rack
  • Fast or Gigabit ethernet, SFP or 1X9 transceiver supports single-mode and multimode, single or dual fibreoptions up to 120km
  • 1/2.5G/10Gb LAN to 10G SFP+ port supports Single-mode and multimode, single or dual fibreoptions
  • Supports up to 10K Bytes Jumbo Frame
  • External 220V to a 5-12V power adapter
  • Build-in DIP switch supported including link fault pass-through, auto laser shutdown, port speed setting, etc.



Advantages of Mini Media Converter:

  • LAN Extension

Extend the reach of the LAN beyond the 100-meter limitation of the CATx copper cable by converting the links to fiber. Fiber links allow connections over distances of up to 80km.

  • Maintain investments of existing equipment

Migrate a local network to fiber and at the same time protect your investment from existing copper hardware while maintaining the existing infrastructure.

  • Protect interference data

Electromagnetic interference (EMI) can cause corruption in data sent over copper Ethernet links. However, the data transmitted through the fiber optic cable is completely immune to this type of noise, guaranteeing optimal data transmission.

  • Speed conversion

Electromagnetic interference (EMI) can cause corruption in data sent over copper Ethernet links. However, the data transmitted through the fiber optic cable is completely immune to this type of noise, guaranteeing optimal data transmission.

  • Speed conversion

Convert link speeds from 10Mbps to 10Gigabit.

  • Reliable data transmission

Considering the fact that a media converter is essentially two transceivers that transmit data from one to another, they provide more secure access and a lower probability of connection loss.



Notes:

  • LFP - Link fault pass through,   When enabled, the UTP receiver is passed to the fibretransmitter to make the media converter appear transparent to the connected end devices. It uses link fault pass-through to indicate when far-end fault issues occur. If a fault occurs, the end device indicates a failure for troubleshooting.
  • ALS - Automatic laser shutdown is a procedure to automatically shut down the laser when there is no input light and stop emitting optical signals。
  • FX - Optical Fiber Port
  • FX Reset - When enabled, the PoE will restart if there is no data input to the UTP receiver.
  • Loop - When enabled, run a loop back test to check the interconnection between two media converter devices.
Model FR-2222
Ethernet Interface
Copper Port 1x10/100/1000M/2.5G/5G/10G
SFP Slot 1x 1.25G/2.5G/5G/10G SFP/SFP+
Standards IEEE802.3i
IEEE802.3u
IEEE802.3ab
IEEE802.3z
IEEE802.3bz
IEEE802.3an
IEEE802.3ae
Jumbo Frame 16K
LEDs TP/LNK, SPD, FX/LNK, PWR
Power Supply
Operating Voltage 5-12VDC
Power Consumption 3W Max(100Mb & 1Gb Models) 5W Max(10Gb Models)
Mechanical
Housing Metal
IP Rating  IP30
Weight 0.12kg/0.26lb(Bare Hardware)
Installation Desktop, Wall Mount, Rack(*require optional rack chassis)
Dimensions 90mm×60mm×20mm(W x D x H)
Environmental
Temperature Operating: 0 to 50℃ (32 to 122℉)
Storage: -20 to +70℃ (-4 to +158℉)
Humidity 5 to 95% noncondensing
Altitude <3000m(<10000 ft.)
MTBF 100,819 Hours
MTBF Standard Telcordia SR-332 GB 25℃
Heat Dissipation 10 BTU/h (100M/1G Models No SFP) 17 BTU/h(10Gb Models No SFP+)
Cooling  Passive Cooling
Noise Level 0 dBA
Package Contents
Shipping Weight 0.35kg / 0.77lb
Dimensions 133x82x80mm (W x D x H)  5.16 x 3.23 x 3.15 in
Device Mini Fiber Media Converter
Power Supply 5-12VDC Power Supply(with region specific plug)
Documentation User Manual



Only jpg/jpeg/png files can be uploaded, and it should not exceed 2M
Cancel Submit
Add reviews
Add first reviews
  • {{ item.user_name }}
    {{ item.content }}
    Loading...
    {{ item.created_at }} {{ item.order_product_name }}
Related Products

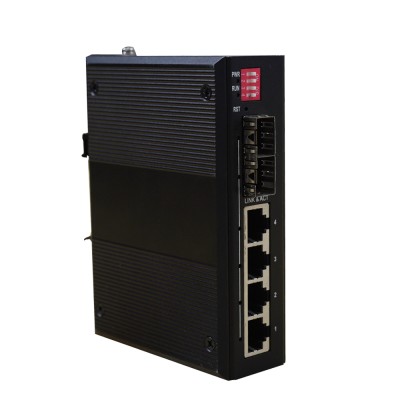

4 10/100/1000M Ethernet electrical ports + 2 Gigabit SFP optical ports Industrial Ethernet Switch
$32.90 $38.90

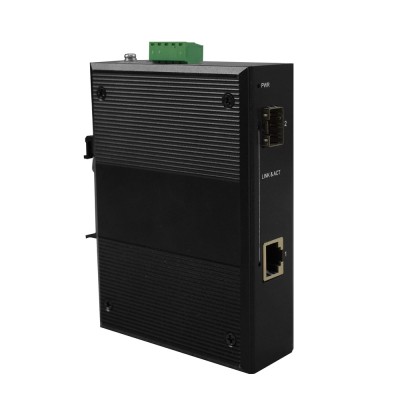

Metal Cover Single Port Network Switch 1x1000Base-FX Industrial 1000M
$22.90 $28.90

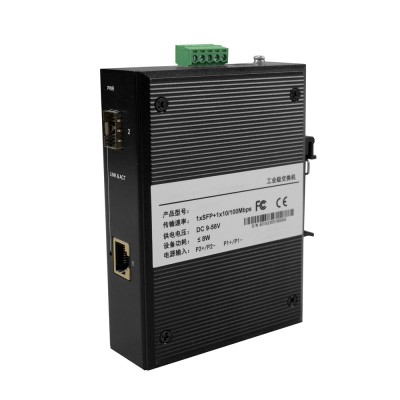

Metal Cover Single Port Network Switch 1x100Base-FX Industrial 100M
$19.90 $25.90

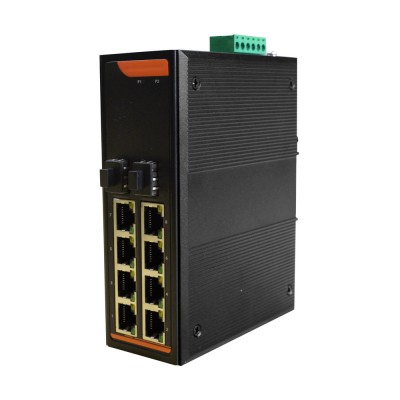

Unmanaged Industrial Ethernet Switch 8 POE Ports 1000M RJ45 2 Ports 1000Base-X SFP
